Laboratory Horizontal Laminar Airflow Workbench Cabinet Clean Bench Flow Hood
Product Overview
Shenzhen Meiri Purification Technology Co., Ltd
Clean Bench Specifications
| Name |
Vertical Flow Clean Bench |
Laminar Flow Clean Bench |
Laminar Flow Clean Bench |
| External Size (mm) |
1200*600*1800 |
1000*825*1800 |
1200*900*1600 |
| Internal Size (mm) |
1124*524*650 |
850*640*620 |
1100*700*720 |
| Noise |
46-55DB±3DB |
50DB±5DB |
58DB |
| Power |
220v 50hz |
220v 50hz |
220v 50hz 150~190W±5W |
| Application |
Medical Pharmacy, Food Industry, Livestock, Power Plants, Healthcare and Hospital, Research Institution, Aerospace Technology, Auto Industry |
| Air Speed (Adjustable) |
0.45m/s |
0.45m/s |
0.45m/s~0.75m/s ±5% |
| Price (USD) |
672 |
1015 |
821 |
| Illumination / Accessories |
Energy Saving Lamp *2 |
Clean Lamp*1 / Germicidal Lamp*1 : 18W/8W |
Clean Lamp*1 / Germicidal Lamp*1 : 18W/8W |
| CFU |
≤0.5cfu/M/0.5H |
≤0.5cfu/M/0.5H |
≤0.5cfu/M/0.5H |
| Applicable No. of People |
1 Person |
1 Person |
1 Person |
| Warranty |
3 Years |
3 Years |
3 Years |
| Material |
Full SUS304 |
Outer Coated Cold-rolled Steel Plate / Inner SUS304 |
Outer Coated Cold-rolled Steel Plate / Inner SUS304 |
Product Features
- Ergonomically isolated operating area
- Integrated moulding working platform, easy to clean and sterilize
- Optional single and double-sided operation functions
- Both lighting and sterilization systems equipped with safety locks
- Soft touch control panel with humanized design
- Complies with various safety technical and medical equipment standards
- Punching holes for operating area: 5mm hole size, 100mm transverse, 50mm longitudinal, uniform distribution
Component Description
- Pre-Filter
- Variable Fan Unit
- High Efficiency Filter
- Clean Lamp and Germicidal Lamp
- Tempered Glass Lift Door
- Stainless Steel Countertop

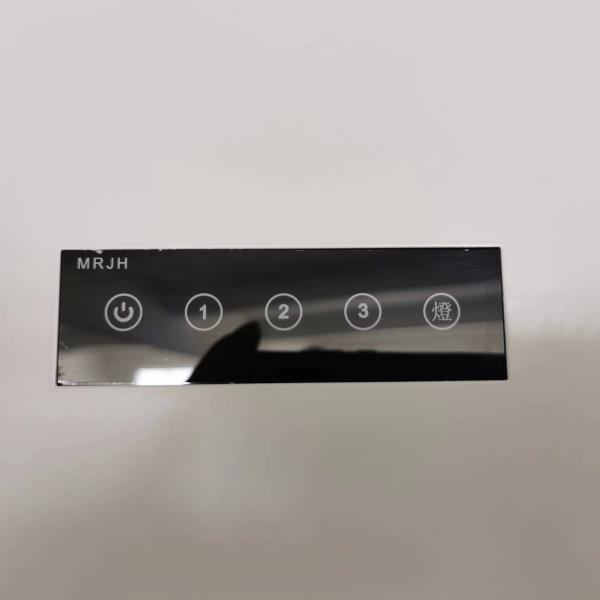

- Touch Panel

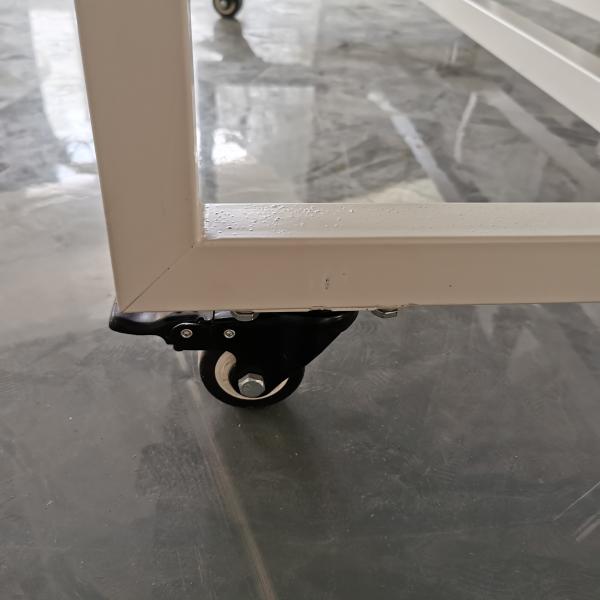

- Universal Casters
- Five-Hole Socket
Technical Specifications
- Cleanliness: ISO5, 100 (US Federal 209E)
- Wind Speed: ≥0.45m/s (Adjustable), Noise: ≤58db
- Illumination: ≥300LX
- Power: 220V/50HZ
- Rated Power: 600W
- Weight: 180KG
- Working Area (mm): W850*D650*H620
- Dimensions (mm): W1000*D825*H1800
- Clean Lamp/Sterilization Lamp: 18W/8w
- CFU: ≤0.5cfu/M/0.5H
- Application: One Person
- Material: Full SUS 304
Key Advantages
Sterile Environment
One of the primary advantages of a clean bench is the creation of a sterile environment. The clean bench uses a high-efficiency particulate air (HEPA) filter to remove airborne particles and contaminants, ensuring that the working area remains free from unwanted substances. This is especially important when working with sensitive samples or conducting experiments that require a sterile environment.
Protection for Samples and Processes
A clean bench provides a physical barrier between the user and the working area, preventing contamination from external sources. This protection is crucial when handling samples or conducting experiments that require a controlled environment. It helps maintain the integrity of the samples and ensures accurate and reliable results.
Reduced Cross-Contamination
By creating a controlled environment, a clean bench helps minimize cross-contamination between different samples or processes. The filtered air flowing through the clean bench creates a unidirectional airflow, preventing the spread of contaminants from one area to another. This is particularly important in laboratories where multiple experiments or different types of samples are being handled simultaneously.
Improved Safety
Clean benches often come with additional safety features such as UV lights for sterilization, adjustable airflow settings, and alarms for filter replacement. These features enhance safety measures and ensure that the clean bench is functioning optimally. By promoting a safe working environment, clean benches help prevent accidents and protect both the user and the samples.
Company Profile
Shenzhen Meiri Purification Technology Co., Ltd was established in 2012, is a professional engaged in the research, development, sale and service of air filters, air purification equipment and cleanroom solutions.
Owning the advanced production processing and highly automotive machine lines for air purification equipment, equipped a dust-free production workshop for air filters, KLC is always capable of meeting production requirements of large projects. MRJH has built a modern quality management system which is strict accordance with international standards such as ISO, till now our products and production technology have obtained dozens of national patents and international certification such as CE, UL, ROHS, REACH.
Certifications
Exhibition
Production Process
Design Development
Prepares Materials
Processing
Assemble
Detection
Package
Product Packaging
Frequently Asked Questions
Q: What's your sample and production lead time?
A: The lead time for sample takes around 3-7 days, mass production lead time is about 2-3 weeks.
Q: How do you ship the goods?
A: It depends on customer's demands. If with the full containers, we'd suggest to ship by vessel. If with small order volumes & urgent orders, we'll suggest to ship by air freight or international couriers.
Q: Where is your company located?
A: Our company & factory are located in Shenzhen, China (No. 79, Langbei Village Industry Road, Tongde Community, Baolong Street, Longgang District, Shenzhen City, Guangdong Province, China).
Q: Can you arrange a visit to your factory?
A: Yes, of course.
Q: Can you provide customized products as our requirements?
A: Yes, of course.
Q: Do you test all your products before delivery?
A: Yes, of course. We will do 100% test and provide test report before delivery.
Q: How long is your items delivery time?
A: It is normal 10~30 days. Usually it depends on order size, quantity and configuration, etc.
Q: What payment term can you accept? What price term can you accept?
A: We can accept T/T, L/C, etc. We can accept EXW, FOB, CFR, CIF, DDU, etc.
Q: What after-sale service can you provide?
A: We can provide 24 hours' technical support online by e-mail, phone, video, etc.
Q: How many countries have you exported to? How do you make long-term relationship and cooperation?
A: We have exported to over 30 countries in Asia, Middle East, Africa, Europe, North America, South America, etc. We will offer good quality, service and price to ensure our customer satisfaction. We will consider our customer as our friend to help them to solve problems.
